AiOS 303
Model · aios-6G604

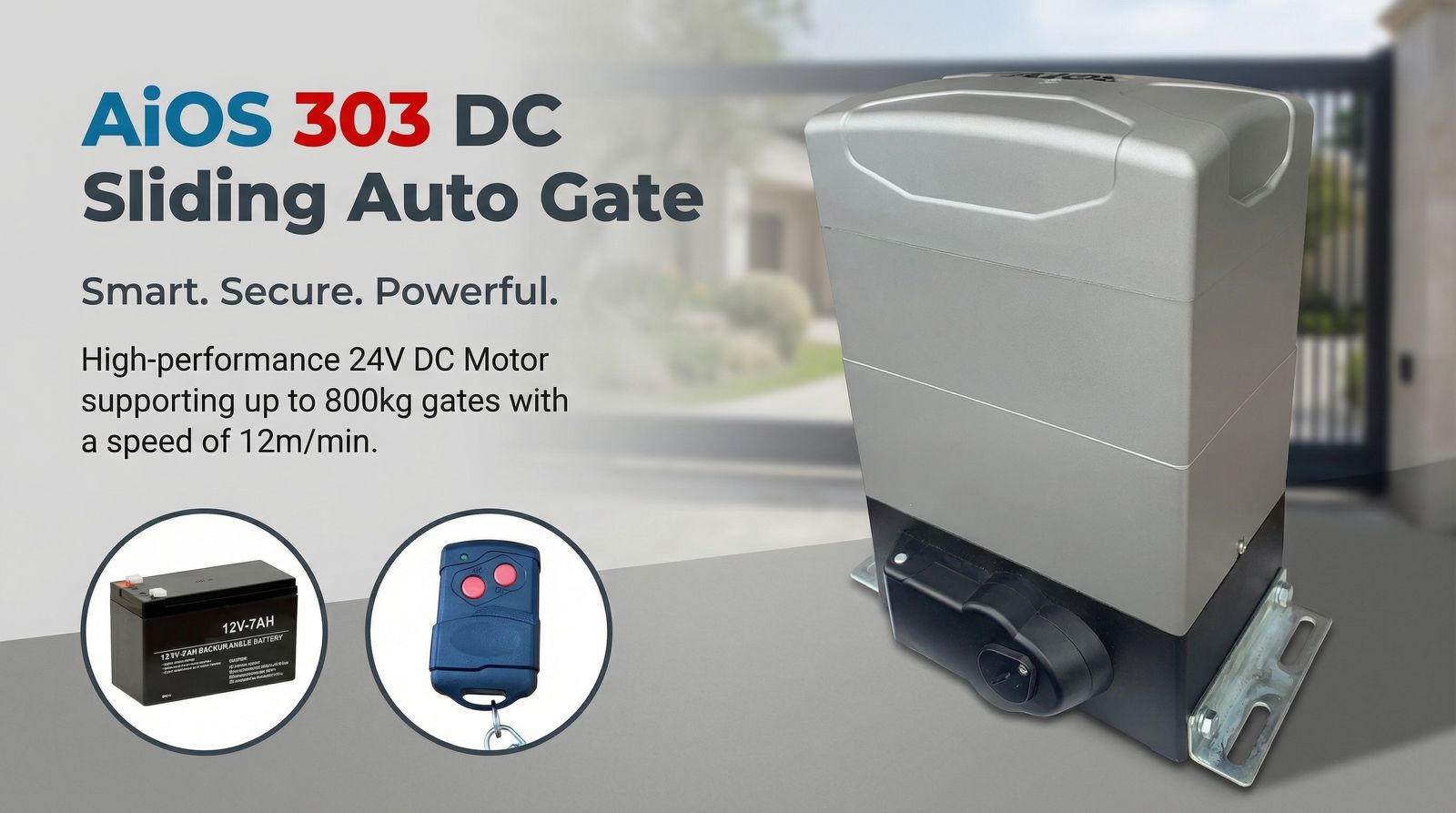

A heavy-duty DC sliding gate motor for residential and industrial use — it handles gates up to 800 kg and comes with a backup battery for continuous operation during power outages.
DC MotorMotor Type
800kg
Maximum Gate Weight
12m/min
Sliding Gate Speed
Key features
AiOS 303
01

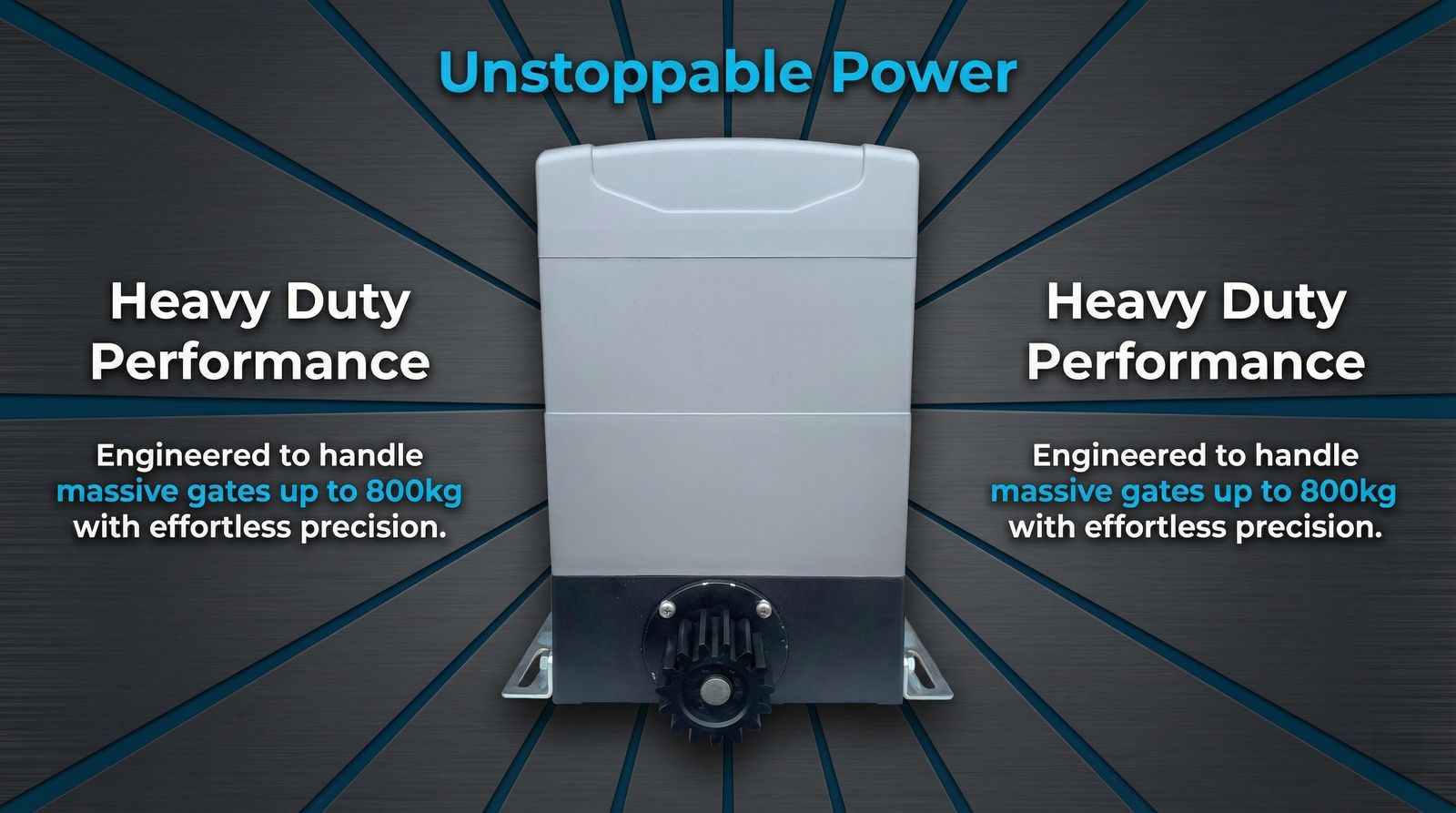

24V DC motor for gates up to 800 kg
02

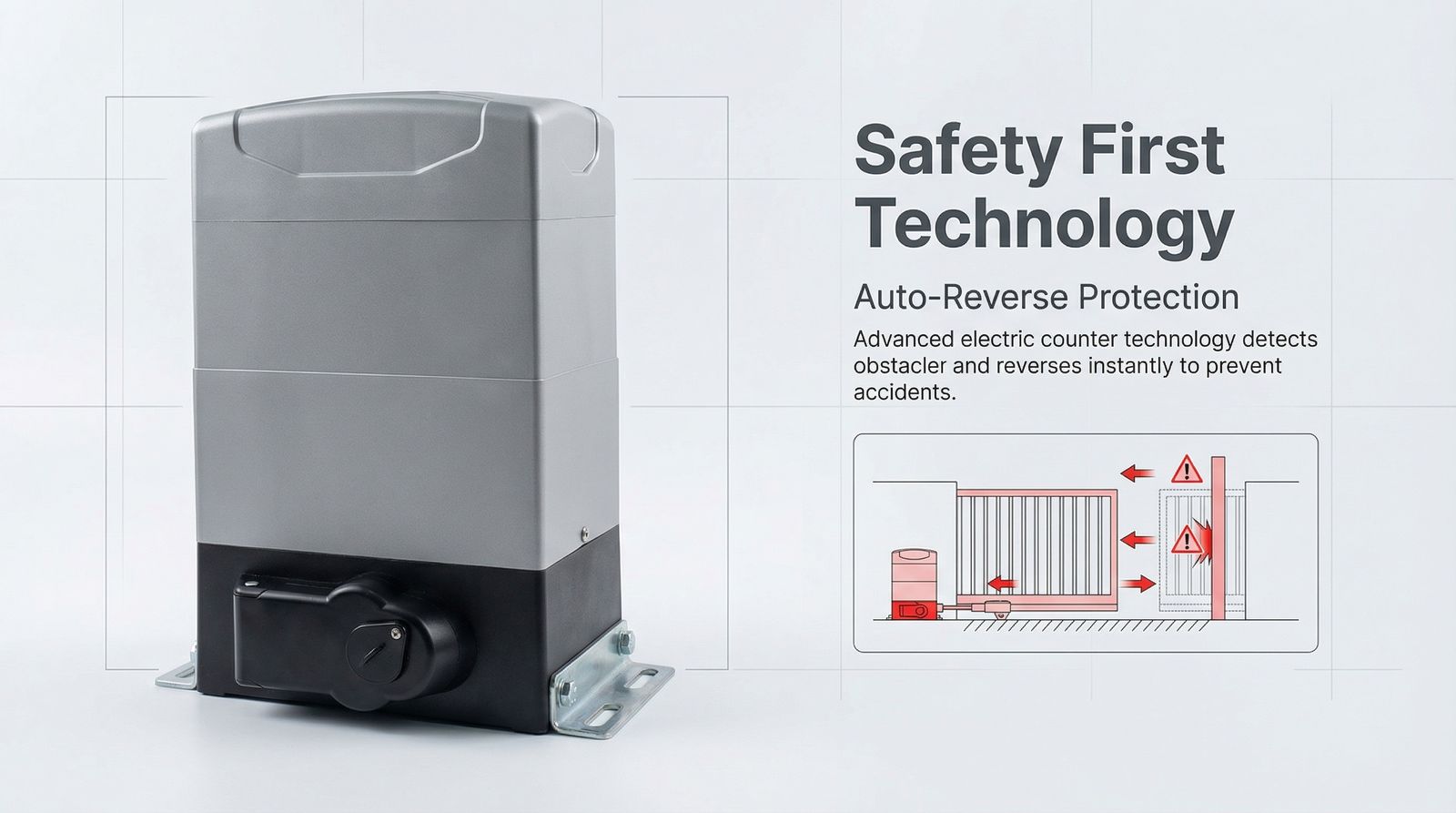

Auto-reverse protection: detects obstacles and reverses instantly
03
12 metres per minute, with precision-engineered gears for fast, quiet, fluid operation
04
Backup battery included
05
Die-cast gearbox
Overview
AiOS 303
The AiOS 303 model is a sliding gate automation system designed for both residential and industrial use. Equipped with a powerful motor, it can handle gates weighing up to 800kg, making it ideal for heavy-duty applications. Built for durability, the AiOS 303 ensures long-lasting performance even in demanding conditions.
The system also comes with a backup battery, ensuring continuous operation during power outages, providing added reliability and peace of mind. Its robust construction and smooth sliding mechanism make it a top choice for those seeking a reliable, high-performance automatic gate system.
Choose the AiOS 303 for seamless operation and superior durability.
AiOS 303
Specifications
Motor Specifications
- Motor Type
- DC Motor
- Built-in Control Board
- Optional
- Power Supply
- AC240
- Motor Power Supply
- 12VDC / 24VDC
Performance & Capacity
- Maximum Gate Weight
- 800 kg
- Sliding Gate Speed
- 12 m/min
Safety & Protection
- Safety Clutch Mechanism
- Auto-reverse electronic counter technology
- Stopper Type
- Electronic Counter Technology (3 speed Operation)
- Key Switch
- Yes
Gear & Mechanical Components
- Gearbox Material
- Die-cast
- Pinion Gear
- Nylon
Backup & Accessories
- Backup Battery
- Yes
- Keypad (Optional)
- Supported

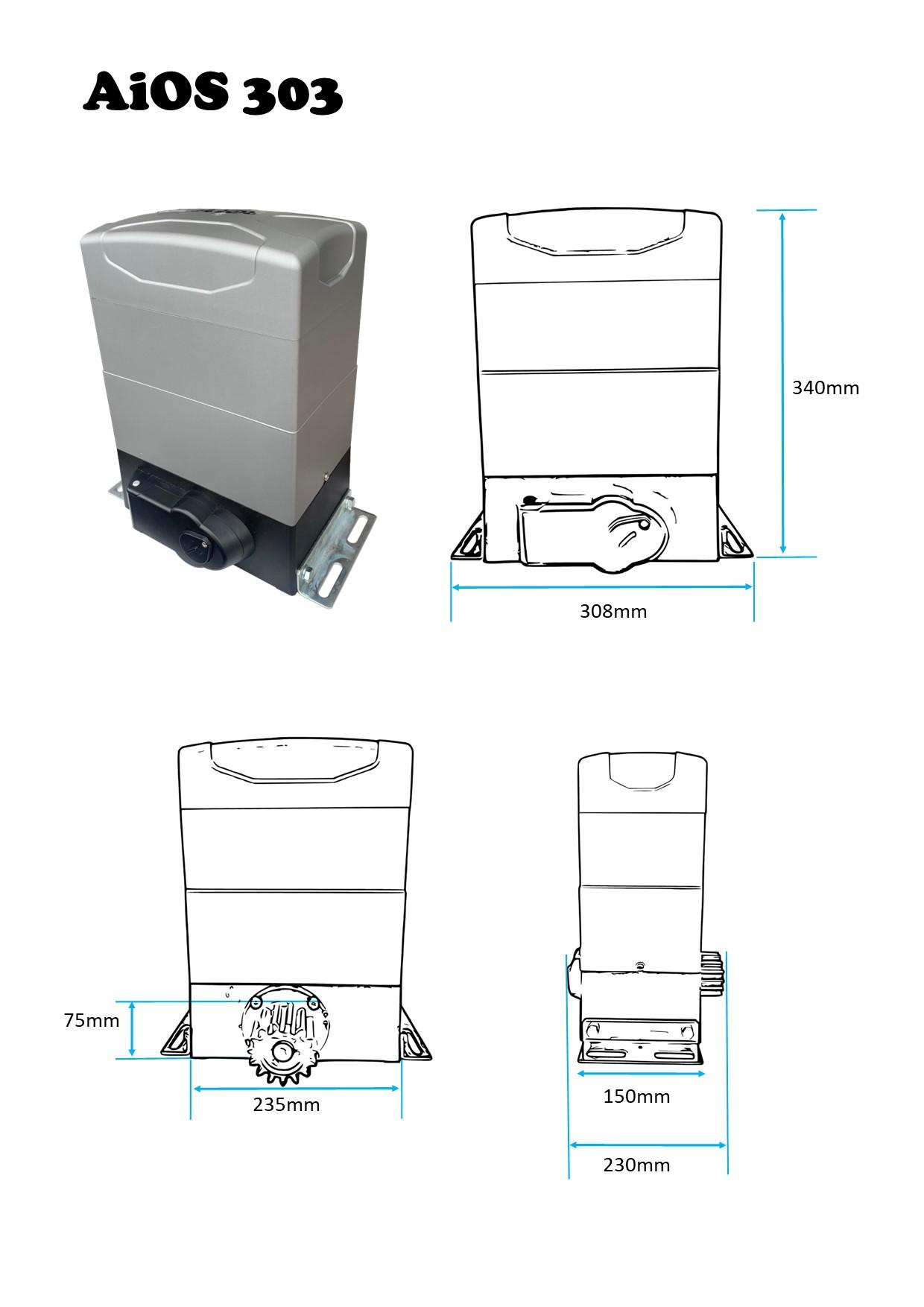

Dimensions
- Overall Width
- 308 mm
- Overall Depth
- 230 mm
- Overall Height
- 340 mm
- Pinion Height
- 75 mm
At a glance
How it compares
|
AiOS 303
This model
|
AiOS 313
|
AiOS 737
|
|
|---|---|---|---|
| Motor Type | DC Motor | DC Motor | AC Motor |
| Maximum Gate Weight | 800 kg | 600 kg | 800 kg |
| Sliding Gate Speed | 12 m/min | 12 m/min | 12 m/min |
