AiOS 707
Model · aios-3M402
A heavy-duty 240V AC sliding gate motor for gates up to 1,500 kg, at a speed of 12 metres per minute.
AC MotorMotor Type
1,500kg
Maximum Gate Weight
12m/min
Sliding Gate Speed
Key features
AiOS 707
01
Heavy duty
02
240V AC motor
03
Maximum gate weight 1,500 kg
04
Speed 12 metres per minute
05
Metal pinion and die-cast gearbox
Overview
AiOS 707

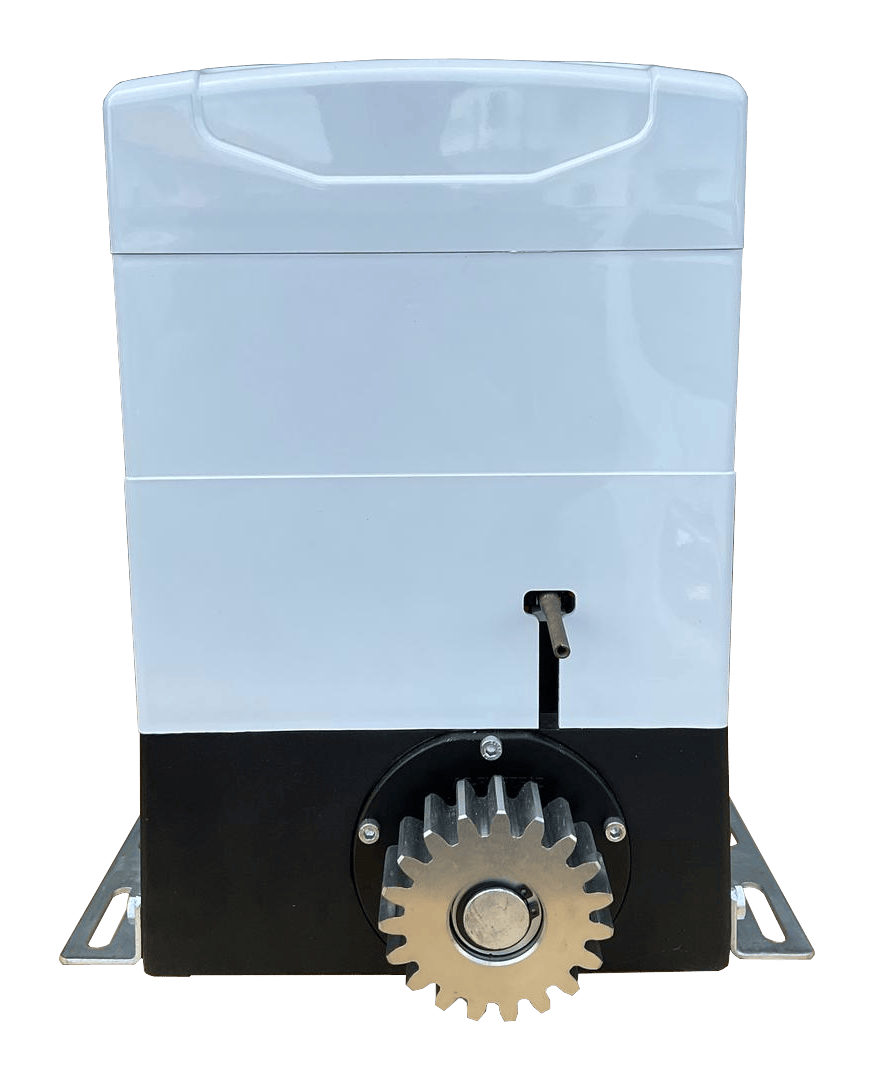

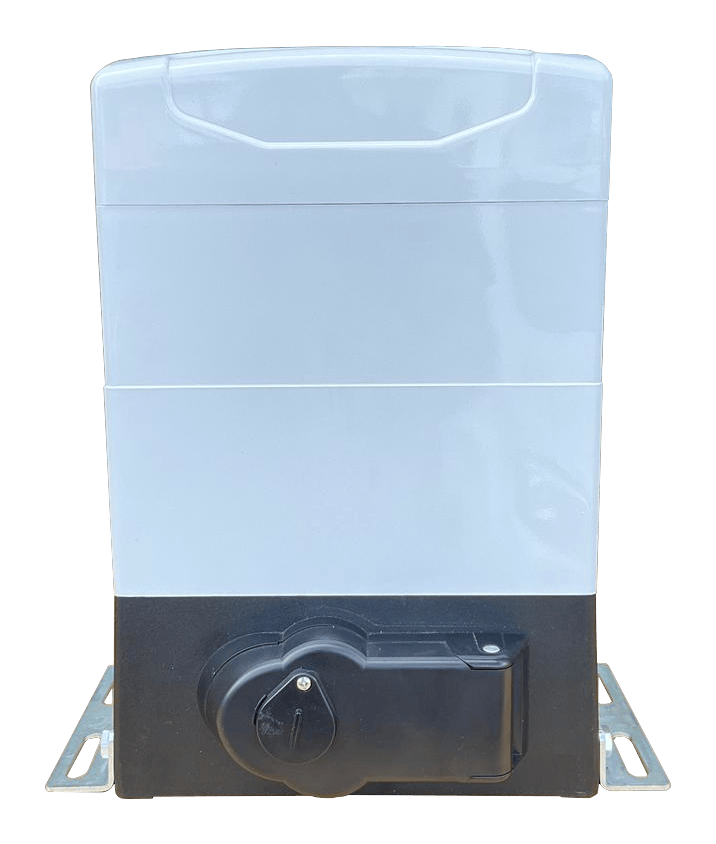

The AiOS 707 is a heavy-duty AC sliding gate motor: a 240V single-phase AC motor for gates weighing up to 1,500 kg, sliding the gate at 12 metres per minute.

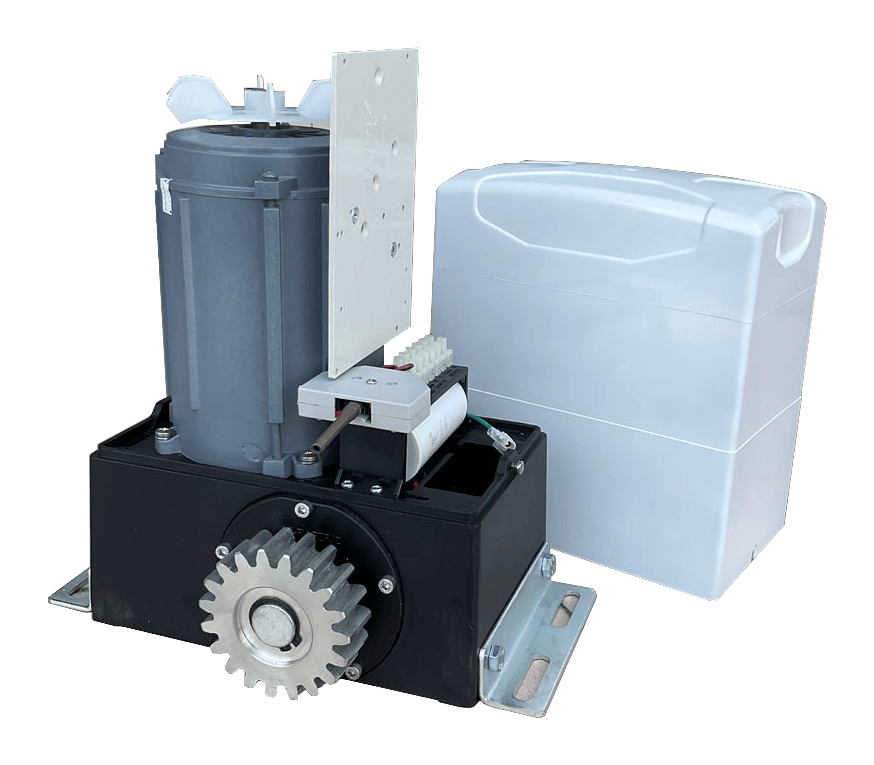

It has hit-stop-reverse safety, spring limit switches, a die-cast gearbox, a metal pinion, a 25 uF capacitor and a key switch; a built-in control board is optional and a keypad is supported.
AiOS 707
Specifications
Motor Specifications
- Motor Type
- AC Motor
- Built-in Control Board
- Optional
- Power Supply
- AC240
- Motor Power Supply
- AC 240 / single phase
Performance & Capacity
- Maximum Gate Weight
- 1,500 kg
- Sliding Gate Speed
- 12 m/min
Safety & Protection
- Safety Clutch Mechanism
- Hit stop reverse
- Stopper Type
- Spring Limit Switch
- Key Switch
- Yes
Gear & Mechanical Components
- Gearbox Material
- Die-cast
- Pinion Gear
- Metal
- Capacitor (uF)
- 25 uF
Backup & Accessories
- Backup Battery
- No
- Keypad (Optional)
- Supported

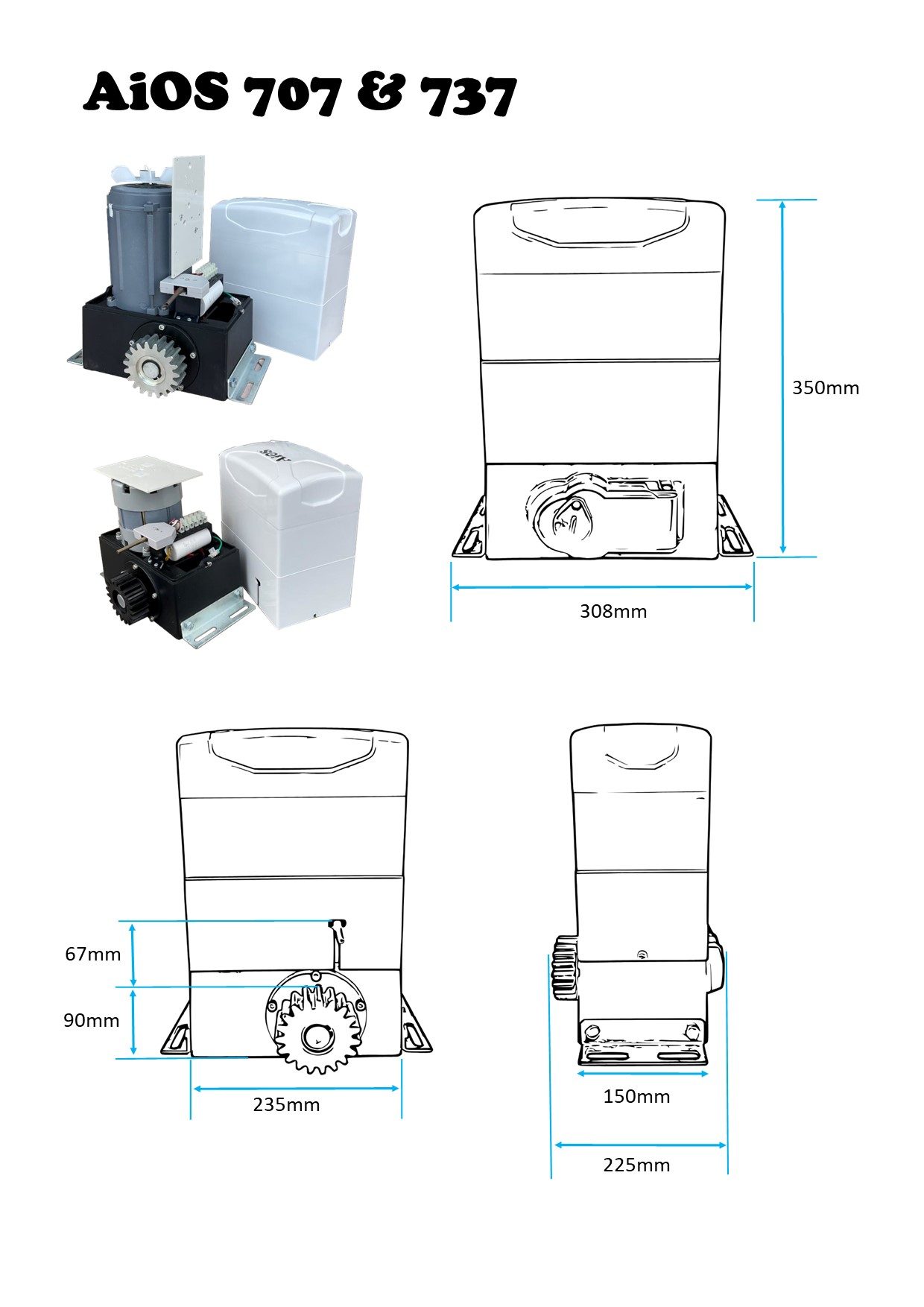

Dimensions
- Overall Width
- 308 mm
- Overall Depth
- 225 mm
- Overall Height
- 350 mm
- Pinion Height
- 90 mm
At a glance
How it compares
|
AiOS 707
This model
|
AiOS 313
|
 AiOS 303
|
|
|---|---|---|---|
| Motor Type | AC Motor | DC Motor | DC Motor |
| Maximum Gate Weight | 1,500 kg | 600 kg | 800 kg |
| Sliding Gate Speed | 12 m/min | 12 m/min | 12 m/min |
