AiOS 737
A 240V AC sliding gate motor for gates up to 800 kg, at a speed of 12 metres per minute.
AC MotorMotor Type
800kg
Maximum Gate Weight
12m/min
Sliding Gate Speed
Key features
AiOS 737
01
240V AC motor
02
Maximum gate weight 800 kg
03
Speed 12 metres per minute
04
Hit-stop-reverse safety
05
Die-cast gearbox
Overview
AiOS 737
The AiOS 737 is an AC sliding gate motor: a 240V single-phase AC motor for gates weighing up to 800 kg, sliding the gate at 12 metres per minute.
It has hit-stop-reverse safety, spring limit switches, a die-cast gearbox, a nylon pinion, a 16 uF capacitor and a key switch; a built-in control board is optional and a keypad is supported.
AiOS 737
Specifications
Motor Specifications
- Motor Type
- AC Motor
- Built-in Control Board
- Optional
- Power Supply
- AC240
- Motor Power Supply
- AC 240 / single phase
Performance & Capacity
- Maximum Gate Weight
- 800 kg
- Sliding Gate Speed
- 12 m/min
Safety & Protection
- Safety Clutch Mechanism
- Hit stop reverse
- Stopper Type
- Spring Limit Switch
- Key Switch
- Yes
Gear & Mechanical Components
- Gearbox Material
- Die-cast
- Pinion Gear
- Nylon
- Capacitor (uF)
- 16 uF
Backup & Accessories
- Backup Battery
- No
- Keypad (Optional)
- Supported

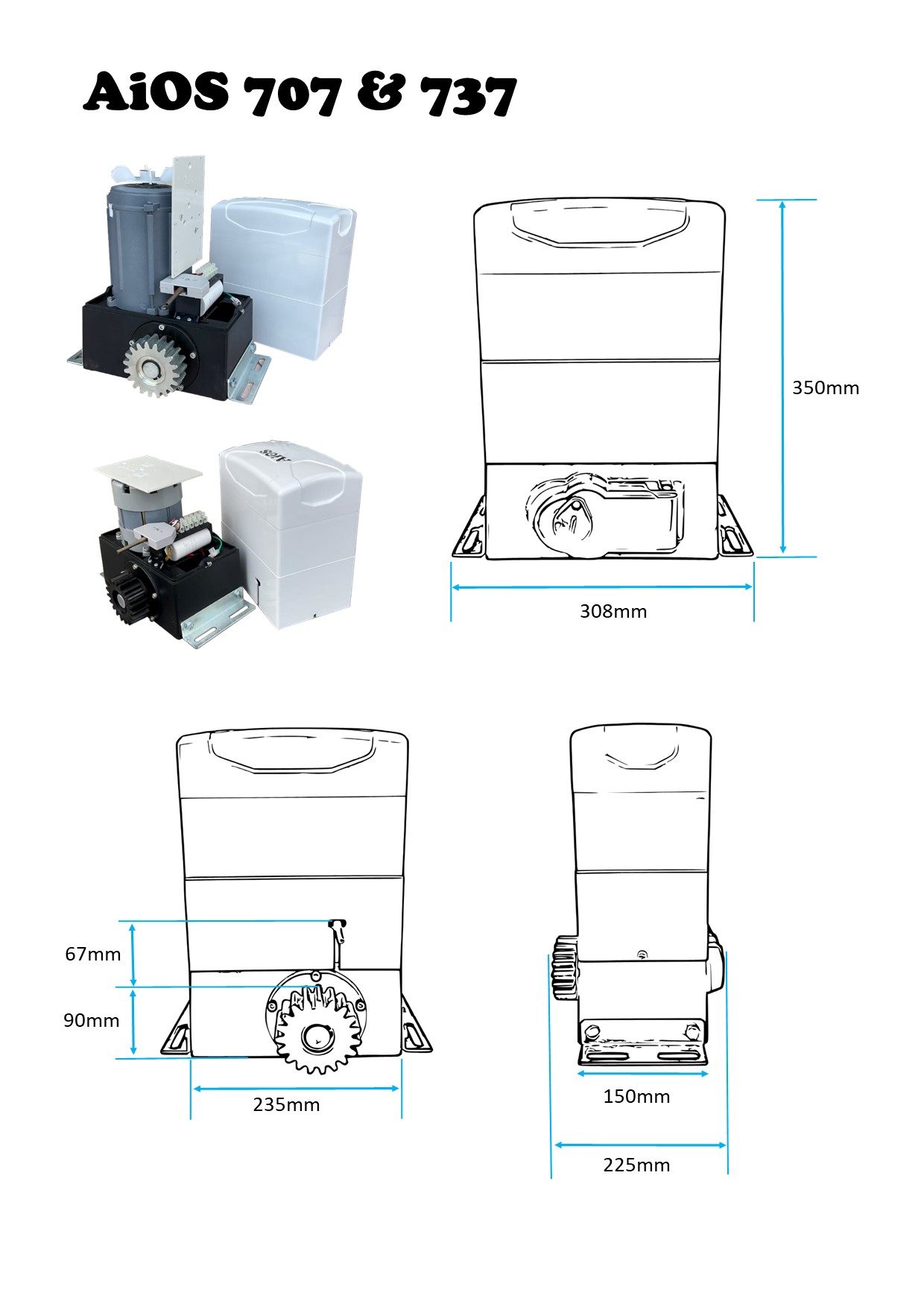

Dimensions
- Overall Width
- 308 mm
- Overall Depth
- 225 mm
- Overall Height
- 350 mm
- Pinion Height
- 90 mm
At a glance
How it compares
|
AiOS 737
This model
|
AiOS 313
|
 AiOS 303
|
|
|---|---|---|---|
| Motor Type | AC Motor | DC Motor | DC Motor |
| Maximum Gate Weight | 800 kg | 600 kg | 800 kg |
| Sliding Gate Speed | 12 m/min | 12 m/min | 12 m/min |
